分層小車進出料木門壓貼機組
首頁 >產品中心>新品推薦
分層小車進出料木門壓貼機組

  • 產品詳細


1、皮帶運輸機 Belt conveyor

BZY1113/29/900

(1)皮帶運輸長度 Belt length: 2900mm

(2)皮帶運輸寬度 Belt width: 1300mm

(3)工作高度 Working height: 900mm(可調Adjustable)

(4)傳送速度 Conveying speed: 15-3m/min (變頻調速Frequency control )

(5)電機功率 Installation power: 1.5kW

(6)外形尺寸 (L x W x H) :   3050 x 1500 x 900mm


2、裝板機Loader

BZX124 x 8/2750

(1)運輸寬度 Conveying width: 1060mm

(2)運輸長度 Conveying length: 3100mm

(3)升降行程 Lifting route: 1600mm

(4)升降速度 Lifting speed: 220mm/s

(5)進出科方式Loading way: 縱向 電動 變頻調速 (Width drection, Automatically, Frequency control)

(6)皮帶運輸速度 Speed of conveying:  15-30m/min


3、熱壓機Hot press

BY154 x 8/16(10)H1RC

(1)公稱壓力 Total pressure: 16000kN

(2)額定壓力 Rated pressure: 22.6Mpa

(3)壓板規格及數量 Platen No.&diameter: 11-2600 x 1200 x 120 mm

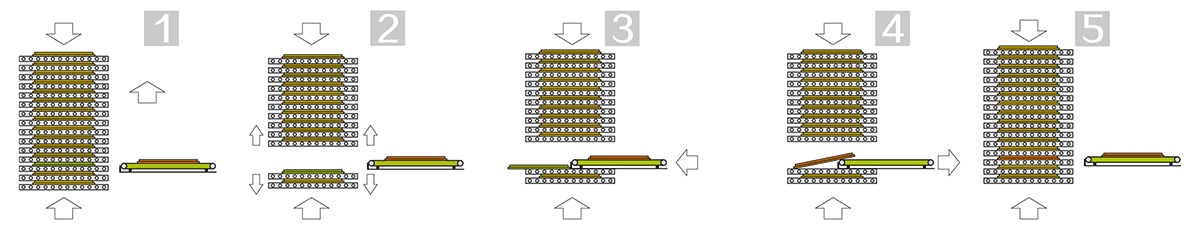

(4)層數 Layer: 1(分層)X10層

(5)層間距 Opening: 150mm

(6)工作溫度 Working temperature: 120℃

(7)壓板開啟方式 Opening way: 電動Automatically

(8)進料方式 Loading way: 縱向 電動 變頻調速 (Width direction,Automatically,Frequency control)


4、卸板機Unloader

BZX144 x 8/2750

(1)運輸寬度 Conveying width:1200mm

(2)運輸長度 Conveying length:2500mm

(3)工作層數 Layer: 1

(4)升降行程 Lifting route: 1600mm

(5)升降速度 Lifting speed: 250mm/s

(6)進出料方式 Loading way: 縱向 電動 變頻調速(Width direction,Automatically, Frequency control)

(7)皮帶運輸速度 Speed of conveying : 15-30m/min

(8)裝機功率Installation powe: 0.75+2.2=2.95kW

(9)重量Weight: 2500kg

(10)外形尺寸(LxWxH): 2600 x 2260 x 3000mm


5、輥筒運輸機 Roller conveyor

BZY3613/25A/900K

(1)輥筒長度 Roller length : 2500mm

輥筒直徑 Roller diameter: 1300mm

工作層數 Working layer: 900mm(可調Adjustable)

運輸速度 Conveying speed: 15-30m/min(變頻調速Frequency control)

電機功率 Installation power:1.1 kW

外形尺寸 (L x W x H) : 2500 x 1550 x 900mm
